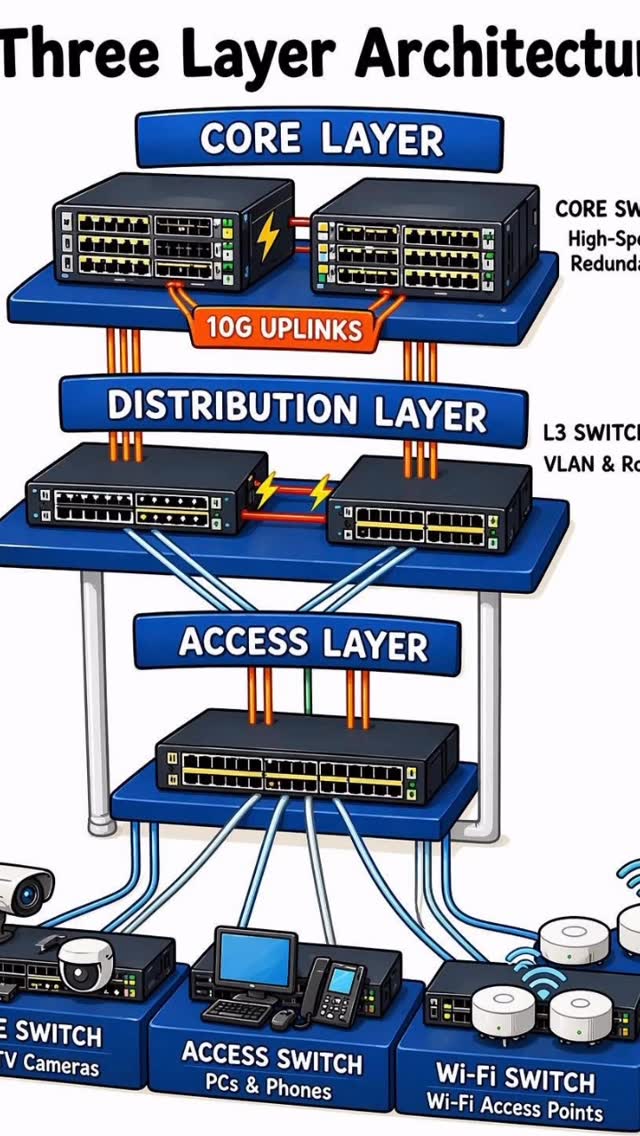

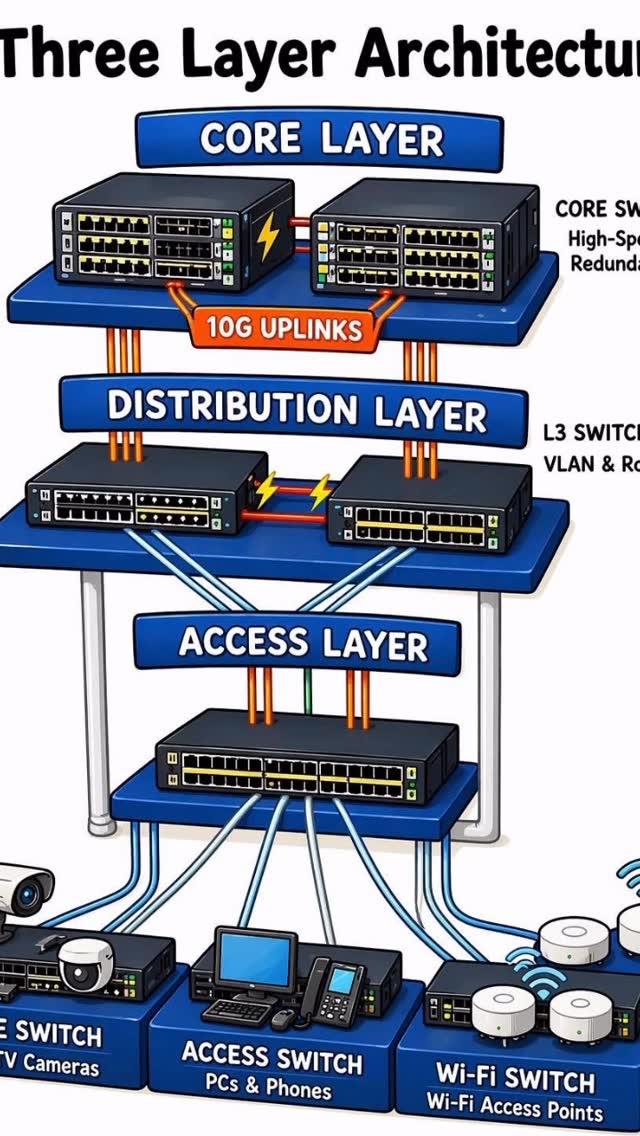

🏗️🌐 Three-Layer Network Architecture — Simplified! Ever wondered how enterprise networks are designed for speed, scalability, and reliability? This visual breaks down the classic 3-layer architecture used in real-world networks: 🔹 Core Layer ⚡ High-speed backbone 🔁 Redundancy & fast data forwarding 🔹 Distribution Layer 🛡️ VLANs, routing, and policy control 🔄 Acts as the bridge between core and access 🔹 Access Layer 💻 Connects end devices (PCs, phones, cameras, Wi-Fi) 🔌 Entry point to the network 🔍 Also included: ✅ PoE switches for CCTV ✅ Access switches for users ✅ Wi-Fi infrastructure for wireless connectivity 💡 Key Takeaway: 👉 A well-designed network is built in layers for performance, security, and easy scalability 📌 Save this for revision 💬 Comment if you want real-world configs or labs 🔁 Share with someone learning networking #education #networking #technology #techno #fblifestyle fyp
